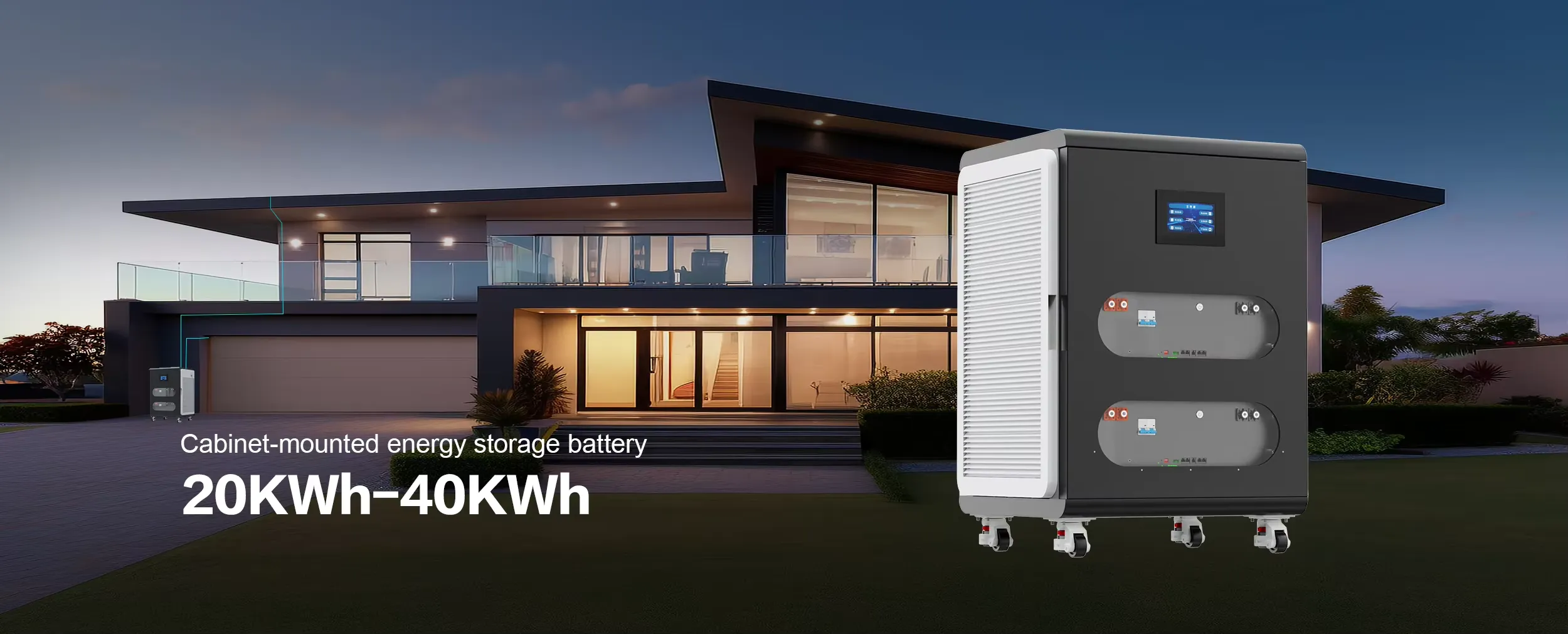

Cabinet-Mounted Storage Batteries
Supports parallel use with multiple units and features a quick-connect plug for effortless expansion
Natural cooling reduces the power consumption of the entire model
A-grade battery cells are meticulously selected to ensure a 10-year service life
The modular design is easy to install and easy to maintain
Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit
Cloud monitoring service, 24 hours to grasp the battery situation at any time
The touchscreen design enhances user convenience and ease of operation
Large capacity, high circulation, safe and stable
| Item | Specifications |
|---|---|
| Nominal Voltage | 51.2V |
| Nominal Capacity | 280Ah |
| Energy | ≈45KWh |
| Working Voltage | 43.2~58.4V |
| Charge Voltage | 58.4V |
| Standard Charge Current | 120A |
| Max Charge Current | 300A |
| Discharge Cut-off Voltage | 43.2V |
| Standard Discharge Current | 120A |
| Max Discharge Current | 420A |
| Cell Model | LF100LA 3.2V/100Ah |
| Housing Material | Cold Rolled Steel Plate |
| Dimensions | 827*698*1181±2mm |
| Weight | ≈ 414kg |
